This article takes a simple-minded stand-alone application, and incrementally evolves it to gently introduce the most interesting APIs of J2EE. The coverage includes:

• RMI
• JNDI
• Servlet
• JSP
• stateless Session EJB (SLSB)
• stateful Session EJB (SFSB)
• Container Managed Persistence (CMP) Entity EJB
• Bean Managed Persistence (BMP) Entity EJB

Starting point

// Select from (0 when done):
//    1 - Design Patterns by GOF
//    2 - Applying UML and Patterns
//    3 - C++ for Deadend Careers
//    4 - Java for Resume Inflation
//    5 - Practical Java
// Choice: 1
// Choice: 3
// Choice: 5
// Choice: 0
// The following items were ordered:
//    Design Patterns by GOF
//    C++ for Deadend Careers
//    Practical Java

"All constructors should be private or protected. The only way to create instances of a class should be through factory methods. It's nobody's business but the class' whether a class manufactures a new object or recycles an old one."   [ 5 ]

The use of factory methods becomes even more desirable in distributed systems. Factory methods can encapsulate the logic for identifying the desirable concrete class to instantiate, and where that object should be hosted on the network. They can also be used to hide the use of back-end persistence mechanisms.   [ 6 ]

Given the design heuristics of interfaces and factory methods, and anticipating the desirable demonstration points of future increments, the implementation in below produces the previous output.

interface IStore {
  ArrayList getItems();
  String    placeOrder( ArrayList list );
}

class Factory {
  public static IStore createStore() {
    return new StoreImpl();
} }

public class StoreClient {
  public static void main( String[] args ) throws IOException {
    BufferedReader in = new BufferedReader(
      new InputStreamReader( System.in ) );
    ArrayList theChoices = new ArrayList();
    int choice;

    // Get a Store object somehow (create, load, look up)
    IStore theStore = Factory.createStore();

    // Download and present the list of
    // current titles
    ArrayList theItems = theStore.getItems();

    System.out.println( "Select from " + "(0 when done):" );
    Iterator it = theItems.iterator();
    for (int i=1; it.hasNext(); i++)
      System.out.println( "   " + i + " - " + it.next() );

    // Solicit the customer's choices
    while (true) {
      System.out.print( "Choice: " );
      if ((choice = Integer.parseInt( in.readLine() )) == 0)
        break;
      theChoices.add(new Integer(choice-1));
    }

    // Place the order with the Store, AND,
    // print the returned confirmation
    // statement
    System.out.println(
      theStore.placeOrder( theChoices ) );
} }

class Item {
  private String name;
  public Item( String na ) { name = na; }
  public String toString() { return name; }
}

class StoreImpl implements IStore {
  private ArrayList itemList =
                        new ArrayList();
  public StoreImpl() {
    itemList.add( new Item(
        "Design Patterns by GOF" ) );
    itemList.add( new Item(
        "Applying UML and Patterns" ) );
    ...
  }
  public ArrayList getItems() {
    return itemList;
  }
  public String placeOrder( ArrayList list ) {
    StringBuffer sb = new StringBuffer();
    sb.append( "The following items were "
      + "ordered:\n" );
    for (Iterator it = list.iterator();
         it.hasNext(); ) {
      sb.append( "   " );
      sb.append( itemList.get(
        ((Integer)it.next()).intValue() ) );
      sb.append( '\n' );
    }
    return sb.toString();
} }

RMI

Additionally, the methods defined in a "remote" class must all be amended to throw java.rmi.RemoteException. This is a proactive convention that anticipates the inhospitable environment presented by the network.

  class Item implements java.io.Serializable {
    ...
  }

  interface RIStore extends java.rmi.Remote {
    ArrayList getItems()
                       throws RemoteException;
    String placeOrder( ArrayList list )
                       throws RemoteException;
  }

In order for servers and clients to find each other, a third party is needed called a "naming service". Sun provides a standard Naming class front-end and the free "rmiregistry" executable back-end. A physical server object is registered in the naming service under a logical string using the static method rebind(). Clients can then request a remote proxy to the server object by invoking the static method lookup() with the same logical string. Because the remote server object may exist on a different machine, Sun has chosen to use the form of a standard URL for communicating the location of the distributed object to the naming service.

// Publishing and finding remote RMI servers.

// Server implementation
class StoreImpl extends    UnicastRemoteObject
                implements RIStore
{ ... }

// Server main()
try {
  Naming.rebind( "StoreServer",
    new StoreImpl() );
  System.out.println( "StoreServer bound in "
    + "rmiregistry" );
} catch (MalformedURLException ex ) {
  ex.printStackTrace();
} catch (RemoteException ex ) {
  ex.printStackTrace();
}

// Client main()
RIStore theStore = (RIStore) Naming.lookup( "rmi://127.0.0.1/StoreServer" );

The output below demonstrates the requisite build and execute steps. Notice that three different Command Prompt windows are required: the "rmiregistry" window, the server window, and the client window.

// RMI build and execute.

D:\j2ee\rmi> rmiregistry

D:\j2ee\rmi> javac StoreImpl.java
D:\j2ee\rmi> rmic StoreImpl
D:\j2ee\rmi> java StoreImpl
StoreServer bound in rmiregistry
Design Patterns by GOF
Applying UML and Patterns
Design Patterns by GOF

D:\j2ee\rmi> javac StoreClient.java
D:\j2ee\rmi> java StoreClient
Select from (0 when done):
   1 - Design Patterns by GOF
   2 - Applying UML and Patterns
   3 - C++ for Deadend Careers
   4 - Java for Resume Inflation
   5 - Practical Java
Choice: 1
Choice: 2
Choice: 1
Choice: 0
The following items were ordered:
   Design Patterns by GOF
   Applying UML and Patterns
   Design Patterns by GOF

JNDI

Sun's original RMI naming service does not support: a hierarchical naming space, federation of existing name spaces, or integration of legacy naming and directory services. JNDI handles all of these.

To use JNDI, the remote class replaces its inheritance relationship to the class UnicastRemoteObject with the class PortableRemoteObject. Additionally, it replaces its invocation of the static method rebind(), with a call to the instance method rebind() defined on the InitialContext class. This class implements the Context interface and provides the starting point for resolution of names. A "context" object is like a directory - it consists of a set of name-to-object bindings.

You will notice that RMI's use of a URL "name" argument has been retired. Instead, a tree-like naming hierarchy can be built up by using simple Strings, and binding many child "context" objects to a parent "context" object.

The "stub" and "skeleton" remote proxy code is still generated by the "rmic" utility. But the argument "-iiop" is required, because JNDI uses CORBA's Internet Inter-ORB Protocol as its transport mechanism.

// JNDI on the server.

// Server implementation
import java.rmi.*;  // Remote, RemoteException
import javax.rmi.*; // PortableRemoteObject
import javax.naming.*;  // InitialContext

class StoreImpl extends PortableRemoteObject
                implements RIStore { ... }

// Server main()
try {
  InitialContext ic = new InitialContext();
  ic.rebind( "StoreServer", new StoreImpl() );
  System.out.println( "StoreServer bound"
    + " in JNDI" );
} catch (NamingException ex ) {
  ex.printStackTrace();
} catch (RemoteException ex ) {
  ex.printStackTrace();
}

// D:\j2ee\jndi> javac StoreImpl.java
// D:\j2ee\jndi> rmic -iiop StoreImpl
// D:\j2ee\jndi> java StoreImpl
// StoreServer bound in JNDI

// JNDI on the client.

// Client main()
try {
  InitialContext ic = new InitialContext();
  Object obj = ic.lookup( "StoreServer" );
  RIStore theStore =
    (RIStore) PortableRemoteObject.narrow(
      obj, RIStore.class );
} catch (NamingException ex ) {
  ex.printStackTrace();
}

[The complete application can be found in listing 3.]

Servlet

The servlet runs as a single instance hosted by a Web "container" that is running on the server machine. Each client that wants to use the services of a servlet is vectored to a servlet instance by the Web container, and it shares the services of this servlet object with possibly many other clients. This architectural introduction is necessary because servlets exhibit the same default "stateless" behavior as the HTTP protocol.

In our application, we would like "stateful" behavior. As the user selects books, we would like to keep a per-user record of these selections, and then when '0' is entered, the list of accumulated selections is passed in the placeOrder() invocation. Fortunately, servlets provide a per-user "session" object that programmers can use as a general purpose "state" repository. We'll return to this issue in just a bit.

Like applets, servlets have a base class that performs all their "heavy lifting". Each servlet simply inherits from this base class. The servlet state that can be "shared" by all the multiplexed clients can be implemented as attributes of the servlet class. In this application, that consists of the reference to the remote Store, and the list of current titles (listing 1). Servlets are not initialized with constructors, they are initialized with an init() method that is invoked automatically by the Web container. All of our JNDI code, and our getItems() request can go in this method.

LISTING 1 - Servlet attributes and initialization.

public class StoreClientServlet extends javax.servlet.http.HttpServlet {
  private RIStore   theStore;
  private ArrayList theItems;

  public void init( ServletConfig sc ) {
    try {
      super.init( sc );
      InitialContext ic = new InitialContext();
      Object obj = ic.lookup( "StoreServer" );
      theStore = (RIStore) PortableRemoteObject.narrow( obj, RIStore.class );
      theItems = theStore.getItems();
    } catch (ServletException ex)          { ex.printStackTrace();
    } catch (NamingException ex )          { ex.printStackTrace();
    } catch (java.rmi.RemoteException ex ) { ex.printStackTrace();
  } }

A servlet needs to access the input coming from the user, and generate output destined for the user. That is the purpose of the two arguments specified in the doGet() and doPost() methods. The "request" object encapsulates the input parameters and the "session" capability. The "response" object encapsulates the output stream for all the dynamic HTML the servlet chooses to send back to the user.

LISTING 2 - Servlet's HTTP entry points.

public void doPost( HttpServletRequest  request, HttpServletResponse response )
    throws ServletException, IOException {
  doGet( request, response );
}
public void doGet( HttpServletRequest  request, HttpServletResponse response )
    throws ServletException, IOException {
  ...
}

LISTING 3 - Servlet HTML code.

public void doGet( HttpServletRequest  request, HttpServletResponse response ) {
  PrintWriter pw = response.getWriter();
  pw.println( "<html><head><title>StoreClientServlet</title></head><body>" );
  pw.println( "<form method=post action=StoreAlias>" );
  pw.println( "Select from (0 when done):<ol>" );
  Iterator it = theItems.iterator();
  for (int i=1; it.hasNext(); i++)
    pw.println( "<li>" + it.next() );
  pw.println( "</ol>Choice:" );
  pw.println( "<input type=text name=choice>" );
  pw.println( "<input type=submit value=Select>" );
  pw.println( "</form></body></html>" );

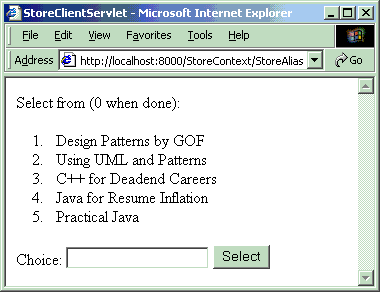

FIGURE 1 - Servlet user input screen.

When this is not the case, we know there is user input waiting to be retrieved in the HTML text input component called "choice". The contents of HTML input components can be retrieved by invoking getParameter() on the "request" object, and supplying the "name" assigned to the input component when it was created in HTML. If the user entered a non-zero value, then the designated selection needs to be remembered in the ArrayList object that is stored in the HttpSession object.

LISTING 4 - Servlet user input processing.

HttpSession session = req.getSession();
// get the array of choices stored in the session object
ArrayList theChoices = (ArrayList) session.getAttribute( "theChoices" );
// get the text input element named "choice"
String choice = req.getParameter("choice");

// if this is the first req for this page
if (theChoices == null) {
  theChoices = new ArrayList();
  session.setAttribute( "theChoices", theChoices );
// remember the current selection
} else if ( ! choice.equals("0")) {
  theChoices.add( new Integer( Integer.parseInt(choice) - 1 ) );
  session.setAttribute( "theChoices", theChoices );

When the user is done with this page, selecting the hyperlink called "Top" will cause flow-of-control to return to the very first page. At this point, we would like a new session to be instantiated for this user - so that the previous choices will be discarded. We can make this happen by "invalidating" the current session.

LISTING 5 - Servlet "place order" processing.

// time to place the order
} else {
  StringBuffer response = new StringBuffer( theStore.placeOrder( theChoices ) );
  formatOrderConfirmation( response );
  pw.println( response.toString() );
  pw.println( "<p><a href=StoreAlias>Top</a></body>" );
  session.invalidate();
  return;
}

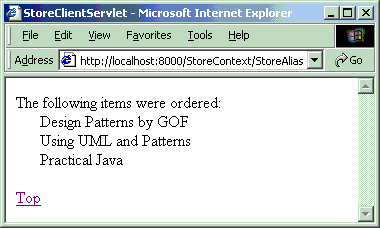

FIGURE 2 - Servlet "place order" response screen.

LISTING 6 - Servlet "history" processing.

// add an extra <UL> to display the history of previous choices
if (theChoices.size() > 0) {
  pw.println( "<p>Selections are:<ul>" );
  it = theChoices.iterator();
  for (int i=1; it.hasNext(); i++)
    pw.println( "<li>" + theItems.get( ((Integer)it.next()).intValue()) );
  pw.println( "</ul></form></body>" );
}

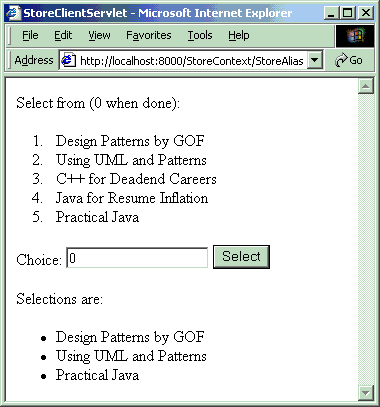

FIGURE 3 - Servlet user input screen (with history).

JSP

The HTML file in listing 7 demonstrates the basics of JSPs. It is standard HTML with Java code placed inside "<%" and "%>" delimiters. An additional feature demonstrated is the JSP expression. These are prefaced with a "<%=" delimiter, and allow the result of a Java expression to be "inlined" with HTML text. This file produces the screen dump in figure 4. [How a URL maps to a particular JSP is vendor specific, and is not discussed here.]

LISTING 7 - JSP simple example.

<html><head><title>DemoJsp</title></head><body>

The date is <%= new java.util.Date() %>
<p>

<%
   StringBuffer sb = new StringBuffer();
   for (int i=1; i < 11; i++) {
      sb.append( i );
      sb.append( ' ' );
   }
%>

Some numbers are: <%= sb.toString() %>

</body></html>

FIGURE 4 - JSP simple example.

The first two lines in listing 8 are the beginning of our Store JSP file (the remainder of the code belongs to a .java source file). The second line demonstrates the syntax for creating an instance of a Java Bean. The name of the object will be "store", the class that will be instantiated is "article.jsp.StoreBean", and the scope of the object will be the same as in the previous servlet. The JSP engine (that is supplied with, or bolted on to, the Web server) will generate all the servlet code that developers used to have to write themselves.

LISTING 8 - JSP Store initialization.

<head><title>StoreClientJsp</title></head><body>
<jsp:useBean id="store" class="article.jsp.StoreBean" scope="session" />


package article.jsp;

public class StoreBean implements java.io.Serializable {
  private RIStore   theStore;
  private ArrayList theItems;
  private ArrayList theChoices;
  private String    selection;

  public StoreBean() {
    theChoices = new ArrayList();
    try {
      InitialContext ic = new InitialContext();
      Object     object = ic.lookup( "StoreServer" );
      theStore = (RIStore) PortableRemoteObject.narrow( object, RIStore.class );
      theItems = theStore.getItems();
    } catch (NamingException ex )         { ex.printStackTrace();
    } catch (java.rmi.RemoteException ex) { ex.printStackTrace();
} } }

The bottom seven lines implement getItemList() in the StoreBean class. Normally, presentation code is confined to an HTML file, and application processing functionality is partitioned in a Java Bean. This convention was bent in listing 9 - the "<li>" tag was put in the Java Bean getItemList() method to simplify the HTML file.

LISTING 9 - JSP user input prompting.

<form method=post action=StoreJspAlias>
Select from (0 when done):
<ol>
  <jsp:getProperty name="store" property="itemList" />
</ol>
Choice:
<input type=text name=choice>
<input type=submit value=Select>
</form></body>


public String getItemList() {
  StringBuffer sb = new StringBuffer();
  Iterator it = theItems.iterator();
  for (int i=1; it.hasNext(); i++)
    sb.append( "<li>" + it.next() );
  return sb.toString();
}

The "jsp:setProperty" tag is new. It is another point of leverage offered by JSP. We no longer need to invoke getParameter() methods on a servlet "request" object to retrieve URL and form parameters. We specify an HTML "widget" that should be mapped to a "set" method in our Java Bean [note the "set" prefix and the use of camel-case capitalization]. The signature of the "set" method should accept one String argument and return void. The top line in listing 10 goes in the JSP file, and causes the form parameter called "choice" to be mapped to the "str" argument of the setSelection() method of the "store" object.

LISTING 10 - JSP user input processing.

<jsp:setProperty name="store" property="selection" param="choice" />


public void setSelection( String str ) {
  selection = str;
  if ( ! selection.equals("0"))
    theChoices.add( new Integer( Integer.parseInt(selection) - 1 ));
}

The first of those lines is another "jsp:getProperty" tag. This causes the getResponse() method to be invoked on the "store" Java Bean, and the method's return value to be inserted into the HTML stream. The final two instructions in the JSP file are embedded Java code. The JSP framework automatically creates an HttpSession object with the variable name "session". This is where the Java Bean object that was created with the "jsp:useBean" tag was stored. [You will recall it was declared to have "session scope" above.] The invalidate() request will cause the Bean to be released, so that its retained state is jettisoned.

LISTING 11 - JSP "place order" processing.

<%
  if (store.isDone()) {
%>
    <jsp:getProperty name="store" property="response" />
    <p><a href=StoreJspAlias>Top</a></body>
<%
    session.invalidate();
    return;
  }
%>


public boolean isDone() {
  if (selection == null) return false;
  return selection.equals( "0" );
}
public String getResponse() {
  StringBuffer response = null;
  try {
    response = new StringBuffer( theStore.placeOrder( theChoices ) );
  } catch (java.rmi.RemoteException ex ) {
    ex.printStackTrace();
  }
  // massage the returned String to work with HTML conventions
  formatOrderConfirmation( response );
  return response.toString();
}

LISTING 12 - JSP "history" processing.

<%= store.displayCurrentSelections() %>
</form></body>


public String displayCurrentSelections() {
  // add an extra <UL> to display the history of previous choices
  StringBuffer sb = new StringBuffer();
  if (theChoices.size() > 0) {
    sb.append( "<p>Selections are:<ul>" );
    for (Iterator it = theChoices.iterator(); it.hasNext(); )
      sb.append( "<li>" + theItems.get( ((Integer)it.next()).intValue()) );
    sb.append( "</ul>" );
  }
  return sb.toString();
}

EJB - Stateless Session Bean

EJB is the "component model" for the J2EE framework. Its goal is to offload Enterprise implementation issues like transaction processing, security, persistence, resource pooling, and scalability from the EJB component developer. The EJB app server (with its "container" abstraction) will manage these details for all its Enterprise Beans. But in order to do that, the container totally decouples each bean from the clients requesting its services. This decoupling (or "insulation") is the primary factor in all the architectural elements discussed in this section; and, significantly affects what EJBs will be allowed to do for themselves. For example, EJBs cannot:

• access the local disk using the java.io package
• create threads
• use the synchronized keyword
• use the java.awt or javax.swing packages
• listen to a socket or create a socket server
• use native libraries

The current implementation of our Store server maps nicely to a stateless Session Bean (SLSB) - the client maintains knowledge of previously selected Items, and the Store is only responsible for responding to getItems() and placeOrder() requests. In subsequent increments, we will: transform the Store into a stateful Session Bean (SFSB), and refactor the Item class into an Entity Bean.

Reworking the JNDI Store server as a SLSB will require remarkably little massaging. Every EJB has three architectural elements: a remote (or "business") interface, a home (or "factory") interface, and a bean implementation. The first of these is exactly what we defined for our original RMI demonstration. The only difference is the requirement to inherit from the javax.ejb.EJBObject interface, instead of the java.rmi.Remote interface.

   interface RIStore extends Remote {

      --- becomes ---

   interface RIStore extends EJBObject {

"The home interface of all SLSBs contains one create() method with no arguments. This is a requirement of the EJB specification. It is illegal to define create() methods with arguments, because SLSBs don't maintain conversational state that needs to be initialized. There are no find() methods in Session Beans because Session Beans ... do not represent data in a database."   [ 7 ]   The following interface was added to our Store component.

   // --- added ---
   interface HIStore extends EJBHome {
     public RIStore create() throws
       java.rmi.RemoteException,
       javax.ejb.CreateException;
   }

In order to realize this "collaboration at arm's length" between a client and the insulated bean, an interface is required - SessionBean in this case. This interface specifies the "technical contract" that the container requires of the bean, in order for the container to accomplish all its scalability and decoupling magic.

The Store server does not actually implement the remote interface anymore. This is because the previous "is a" relationship has now been replaced with a "has a" relationship inside the EJB app server's container. The programmer implementing the bean (not the compiler) is responsible for ensuring that all business methods are defined. As a final step in the development process, a vendor-specific "deployment tool" will ensure that all contracts and conventions have been satisfied.

   class StoreImpl
     extends PortableRemoteObject
     implements RIStore {

       --- becomes ---

   public class StoreImpl
     implements SessionBean {

   public StoreImpl() throws RemoteException {

      --- becomes ---

   public void ejbCreate() {

// Session Bean "technical" contract.

// --- added --- from SessionBean interface
public void ejbActivate()  {
  System.out.println( "ejbActivate:" ); }
public void ejbPassivate() {
  System.out.println( "ejbPassivate:" ); }
public void ejbRemove()    {
  System.out.println( "ejbRemove:" ); }
public void setSessionContext(
                     SessionContext ctx ) {
  System.out.println("setSessionContext:");
  context = ctx;
}

For this reason, the client of a Session Bean does not "look up" the server object. Instead, the client looks up the factory object. This object is generated by the EJB framework, but the JNDI name that the object is bound under is specified during the deployment process. After finding the factory object, the client is required to explicitly ask for a server object to be "created". This notion of "create" is entirely abstract. What the factory object does in response to this request is "nobody's business" but its own.   [ 5 ]

// Remote server look up.

Object  obj = ic.lookup( "StoreServer" );
RIStore theStore = (RIStore)
  PortableRemoteObject.narrow(
    obj, RIStore.class );

   --- becomes ---

Object  obj = ic.lookup( "StoreHome" );
HIStore storeHome = (HIStore)
  PortableRemoteObject.narrow(
    obj, HIStore.class );
RIStore theStore = storeHome.create();

[The complete application can be found in listing 6.]

EJB - Stateful Session Bean

The "business" interface will need to change. This is generally discouraged because of the impact it will have on the client community. But, considering the remarkable reduction in effort that will be afforded those clients, they will be only too happy to accept that relatively minor inconvenience. The changes to the remote interface include: add a selectItem() method, and remove the parameter to the placeOrder() method.

   String placeOrder( ArrayList list )
                       throws RemoteException;

      --- becomes ---

   void selectItem( int number )
                       throws RemoteException;
   String placeOrder() throws RemoteException;

• SFSBs cannot be shared by multiple clients. Each client must be assigned their own instance.
• This inability to be shared means that performance will eventually degrade under heavy loads.
• The state information is generally mapped to attributes, and those attributes should be initialized with ejbCreate()
• SFSBs can have overloaded ejbCreate() methods
• SFSBs may want to participate in transactions
• The ejbActivate() and ejbPassivate() methods (used for swapping virtual beans in and out of real objects) may need to perform real work.

// Migrating "state" to the server.

public String placeOrder( ArrayList list) {
  for (Iterator it = list.iterator();
       it.hasNext(); ) {

// --- becomes ---
public String placeOrder() {
  for (Iterator it = theChoices.iterator();
       it.hasNext(); ) {

// --- added ---
public void selectItem( int number ) {
  theChoices.add( new Integer( number ) );
}

// Migrating "state" off the client.

theChoices.add( new Integer( choice-1 ) );

    --- becomes ---

theStore.selectItem( choice-1 );


System.out.println(
  theStore.placeOrder( theChoices ) );

    --- becomes ---

System.out.println(
  theStore.placeOrder() );

[The complete application can be found in listing 7.]

EJB - CMP Entity Bean

LISTING 13 - Client interaction, persistent data.

D:\j2ee\cmp> java StoreClient
Select from (0 when done):
  1 - Design Patterns by GOF ..... $35 ... 1
  2 - Applying UML and Patterns .. $30 ... 1
  3 - C++ for Deadend Careers ....  $5 ... 1
  4 - Java for Resume Inflation .. $10 ... 0
  5 - Practical Java ............. $20 ... 0
Choice: 1
Choice: 2
Choice: 1
Choice: 0
The following items were ordered:
   Design Patterns by GOF ..... $35 ... 2
   Applying UML and Patterns .. $30 ... 2
   Design Patterns by GOF ..... $35 ... 3
Total bill is $100

D:\j2ee\cmp> java StoreClient
Select from (0 when done):
  1 - Design Patterns by GOF ..... $35 ... 3
  2 - Applying UML and Patterns .. $30 ... 2
  3 - C++ for Deadend Careers ....  $5 ... 1
  4 - Java for Resume Inflation .. $10 ... 0
  5 - Practical Java ............. $20 ... 0
Choice:

An Entity Bean requires the same three architectural elements as a Session Bean: a remote (or "business") interface, a home (or "factory") interface, and a bean implementation. In listing 14, the remote interface declares a getSummary() method that will replace the previous toString(). This is to emphasize that the class will now be reporting the name, price, and totalOrdered for each object. An order() method has been added that will increment the totalOrdered attribute, and, will also return the price of the Item object.

The home interface's purpose is to provide a level of indirection capable of providing the same quality of decoupling that a factory affords (see the discussion in the "Starting point" section at the top of the article). Because Entity Beans represent persistent data, the client is expected to first search for the desired object, and if the object does not exist, then ask for the object to be created.

Each Entity Bean home interface must declare at least one "find" method - findByPrimaryKey(). This method shall take one argument - the type of the primary key that has been designed to uniquely identify each instance of the Entity Bean. At a minimum, the primary key must be a class that implements java.io.Serializable. If the type of the primary key is a primitive type (as is the case here), then that type must be "promoted" to its java.lang wrapper type equivalent. The method shall return the remote interface type.

Any number of "find" methods may be declared. The only restrictions are: the name of the method must provide the EJB framework sufficient insight so that it can infer a mapping from the find method's name to its corresponding implementation class attribute, and, each method must return either the remote interface type or the java.util.Collection type. An example would be - Collection findByPrice( Integer price ). The findAllInstances() method declared in listing 14 is a common (but optional) convention.

LISTING 14 - Item bean remote and home interfaces.

interface RIItem extends EJBObject {
  public String getSummary() throws RemoteException;
  public int    order()      throws RemoteException;
}

interface HIItem extends EJBHome {
  RIItem     create( Integer primaryKey, String name, int price )
                                            throws RemoteException, CreateException;
  Collection findAllInstances()             throws RemoteException, FinderException;
  RIItem     findByPrimaryKey( Integer pk ) throws RemoteException, FinderException;
}

LISTING 15 - Item bean implementation.

public class ItemImpl implements EntityBean {
  transient private EntityContext context;
  public int    id;
  public String name;
  public int    price;
  public int    numSold;

  public String getSummary() {
    return name + " $" + price + "..." + numSold;
  }
  public int order() {
    numSold++;
    return price;
  }

When ejbCreate() is invoked by the container, the Entity Bean does not have a fully formed identity. If the Bean needed to reference that identity, or pass it to some other component, that should not be done in ejbCreate(). For these situations, an ejbPostCreate() method has been specified. Its argument list should match that of the corresponding ejbCreate(). Its return type is void. Its implementation is routinely empty, unless, the developer needs to do one the things just described.

LISTING 16 - Item bean initialization.

public Integer ejbCreate( Integer pk, String nm, int pr ) {
  id      = pk.intValue();
  name    = nm;
  price   = pr;
  numSold = 0;
  System.out.println( "ItemImpl " + "ejbCreate: " + id );
  return null;
}
public void ejbPostCreate( Integer pk, String nm, int pr ) {
  System.out.println( "ItemImpl " + "ejbPostCreate: " + id );
}

The final "new" method is unsetEntityContext(). This is called by the EJB framework as the final response to an invocation of the remove() method. The developer is encouraged to assign null to the context attribute, for reasons similar to the practice of assigning null to a deallocated pointer in C. Returning to the methods shared with the SessionBean interface, ejbActivate() and ejbPassivate() are used to support "swapping" logical bean instances in and out of physical bean hosts (not unlike the symbiont-host relationship of the Trill race in Star Trek). These entry points should be used to close (and subsequently reopen) resources (e.g. a JDBC connection) that should not remain active while the bean is in "hibernation". Additionally, ejbActivate() should always initialize the bean class' primary key attribute.

The SLSB discussion briefly mentioned the SessionContext object. Entity Beans have a comparable EntityContext object. This object is created by the EJB framework before ejbCreate() is invoked. It provides access to elements of each bean's "environment" like: the associated EJBObject wrapper object, the associated EJBHome factory object, the primary key, transaction elements, and security information.

LISTING 17 - Item bean "technical" methods.

// from SB and EB interface
public void ejbActivate() {
  id = ((Integer)context.getPrimaryKey()).intValue();
  System.out.println( "ItemImpl " + "ejbActivate: " + id );
}
public void ejbPassivate() ...
public void ejbRemove() ...
public void setEntityContext( ...

// from EntityBean interface
public void ejbLoad() {
  System.out.println( "ItemImpl " + "ejbLoad: " + id );
}
public void ejbStore() {
  System.out.println( "ItemImpl " + "ejbStore: " + id );
}
public void unsetEntityContext() {
  System.out.println( "ItemImpl " + "setEntityContext: " + id );
  context = null;
}

The "client" of Item Entity Beans is the Store Session Bean. Its first order of business is to retrieve all current Item beans. This will involve acquiring a reference to an implementation of the bean's home interface, and requesting findAllInstances() (listing 18). If the Collection that is returned is empty, then no instances exist in the persistent store yet. The only option available at this point is to create a set of default instances.

LISTING 18 - Refactoring the Store bean.

public void ejbCreate() {
  System.out.println( "ejbCreate:" );
  try {
    InitialContext ic = new InitialContext();
    Object        obj = ic.lookup( "ItemHome" );
    HIItem itemHome = (HIItem) PortableRemoteObject.narrow( obj, HIItem.class );
    Collection coll = itemHome.findAllInstances();
    if (coll.size() > 0) {
      for (Iterator it = coll.iterator(); it.hasNext(); ) {
        RIItem item = (RIItem) PortableRemoteObject.narrow( it.next(), RIItem.class );
        itemList.add( item );
      }
    } else {
      itemList.add( itemHome.create(
        new Integer(1), "Design Patterns by GOF .....", 35 ));
      itemList.add( itemHome.create(
        new Integer(2), "Applying UML and Patterns ..", 30 ));
      ...
    }
  } catch ...

We can address this issue by having getItems() return a Collection of "summary objects" - an abstraction that provides just enough state and behavior for the client to accomplish its responsibilities (without having to make round-trip requests across the network). [See listing 19.] In this simple design, the summary object is nothing more than a String. As a result, the client of the Store Session Bean doesn't change at all. Before the Item class became an Entity Bean, the collection of objects returned from getItems() each responded to an implicit invocation of toString() when it was passed to System.out.println(). Now, the collection of String objects returned are output directly to the client's standard out.

LISTING 19 - Returning "summary objects" to the client.

public Collection getItems() {
  Collection summary = new ArrayList();
  try {
    for (Iterator it = itemList.iterator(); it.hasNext(); )
      summary.add( ((RIItem)it.next()).getSummary() );
  } catch (RemoteException ex) {
    ex.printStackTrace();
  }
  System.out.println( "\nreturning " + summary.size() + " items to client");
  return summary;
}

LISTING 20 - Exercising Item bean's new leverage.

public String placeOrder() {
  StringBuffer sb = new StringBuffer();
  RIItem element;
  String summary;
  int    totalBill = 0;
  System.out.println();
  sb.append( "The following items were ordered:\n" );
  try {
    for (Iterator it = theChoices.iterator(); it.hasNext(); ) {
      element = (RIItem) itemList.get( ((Integer)it.next()).intValue() );
      totalBill += element.order();
      summary = element.getSummary();
      System.out.println( summary );
      sb.append( "   " );
      sb.append( summary );
      sb.append( '\n' );
    }
  } catch (RemoteException ex) {
    ex.printStackTrace();
  }
  sb.append( "Total bill is $" + totalBill + '\n' );
  System.out.println( "returning " + theChoices.size()
    + " orders to client, bill is $" + totalBill + '\n' );
  return sb.toString();
}

EJB - BMP Entity Bean

Each of the entry points mandated and called by the EJB framework generally map to a single SQL statement -

ejbFindByPrimaryKey()	SELECT
ejbFindAllInstances()	SELECT
ejbCreate()	INSERT
ejbLoad()	SELECT
ejbStore()	UPDATE
ejbRemove()	DELETE
ejbActivate()	application specific
ejbPassivate()	application specific

[The complete application can be found in listing 9.]

Summary

All these architectural elements contribute to the scalability and maintainability of enterprise information systems. They provide a "component model" capable of supporting deploy-time specification of transactions, security, and collaborations. Additionally, they promote flexible multi- tier, distributed designs that encourage the segmentation of responsibilities into: model, view, and controller layers.

J2EE will continue to grow. The discussion offered here was intended to introduce a significant subset of its current state.

References
